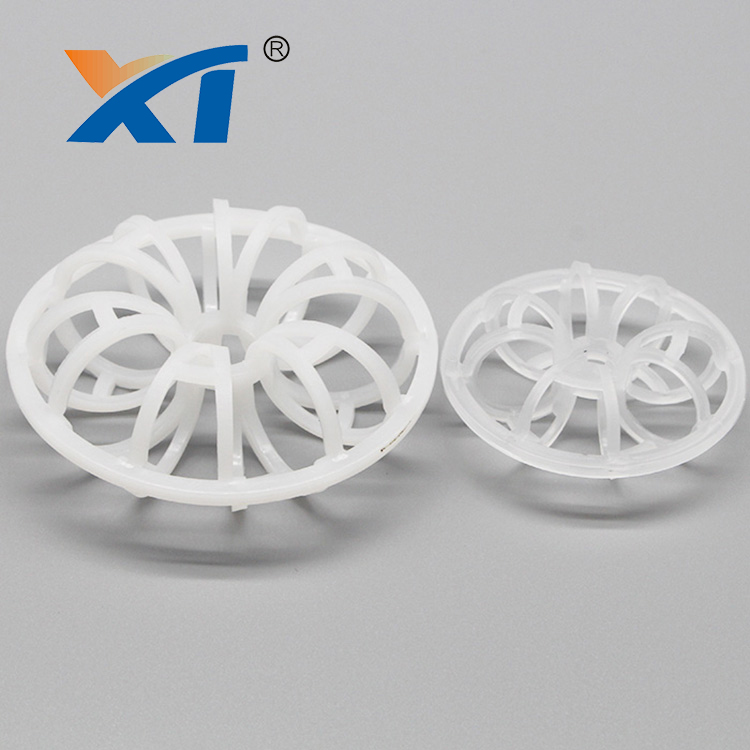

填料商城 PackingMallPlastic Tellerate Rosette Ring1) High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
2) Widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrade.
Model
Tellerate Rosette Ring
Material
PP
Spec of PP Teller Ring
Dg25 (5-ring)
Dg47 (8-ring)
Dg51 (8-ring)
Dg59 (12-ring)
Dg73 (12-ring)
Dg95 (18-ring)
Dg145 (20-ring)
D*H*T
(mm)
25*9*1.5*2
47*19*3*3
51*19*3*3
59*19*3*3
73*28*3*4
95*37*3*6
145*48*3*6
Number per m³
PCS
170000
32500
25000
17500
8000
3900
1100
Bulk density
(Kg/m³)
95.2
71.5
60
64.8
46.4
46
46.2
Surface area
(m²/m³)
195
185
180
150
127
94
65
Free volume
(%)
82
88
98
92
89
90
95
Typical Application
Absorption, scrubbing, and stripping services
Size25mm,47mm,51mm,59mm,73mm,95mm,145mmMaterialCommon material is PP,if you need other material,ex. PE or PVC,please contact customer service to change pricePackageBesides plastic bag,super sack for option7-8Plastic bag/CBM1CBM/Sack 1Sack/Pallet
TransportationInternational express, by sea or by airPaymentWechat pay, Alipay or T/T TransferIf you choose T/T Transfer, please contact customer service
